Complete Sandwich Panel Production Lines — NEVO Industrial
Engineering, equipment selection, automation, installation and commissioning for modern sandwich panel manufacturing facilities.
Complete production line solutions.
Six line families — each engineered end-to-end from raw-material intake to packaged, sellable panel.

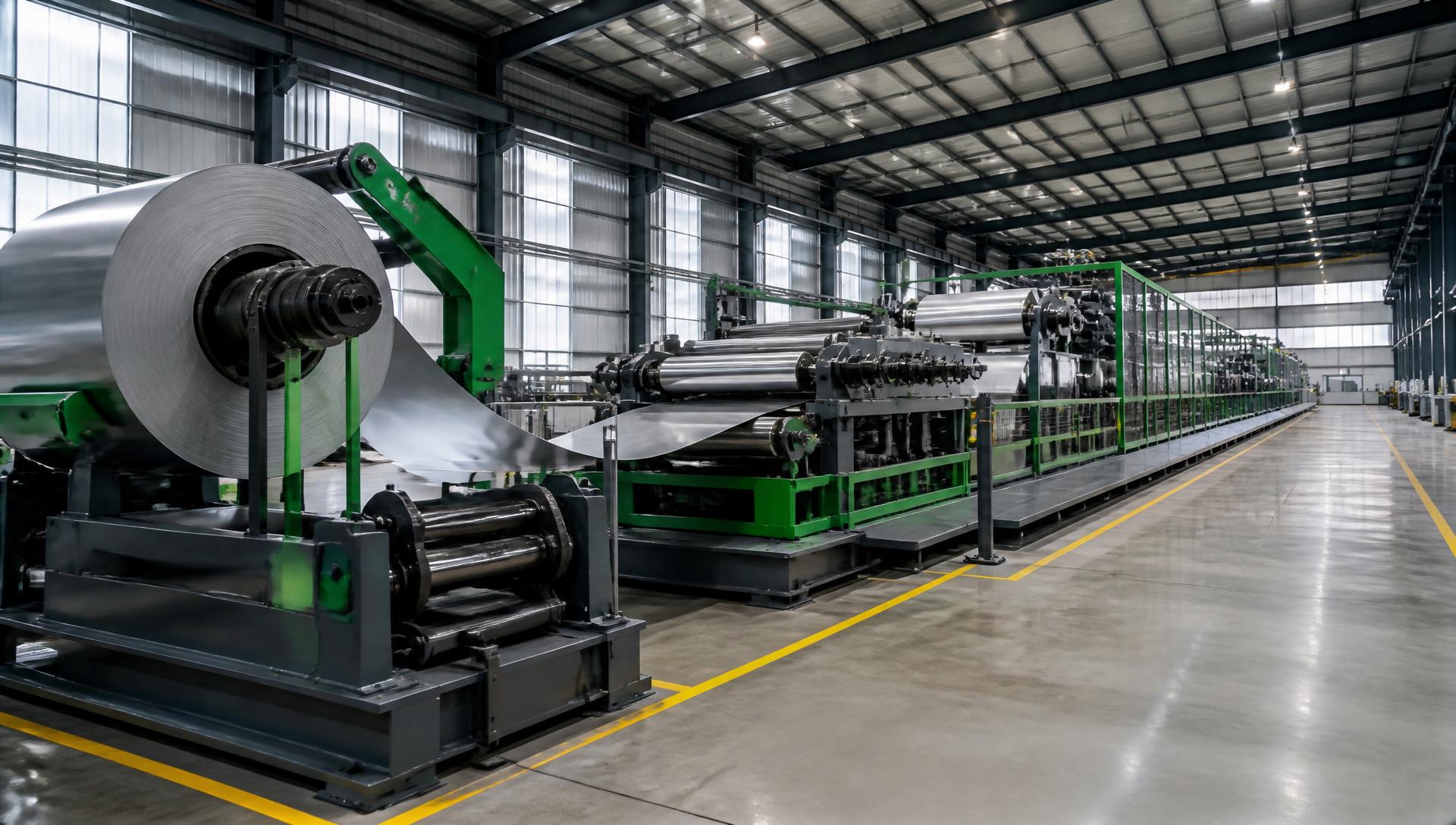

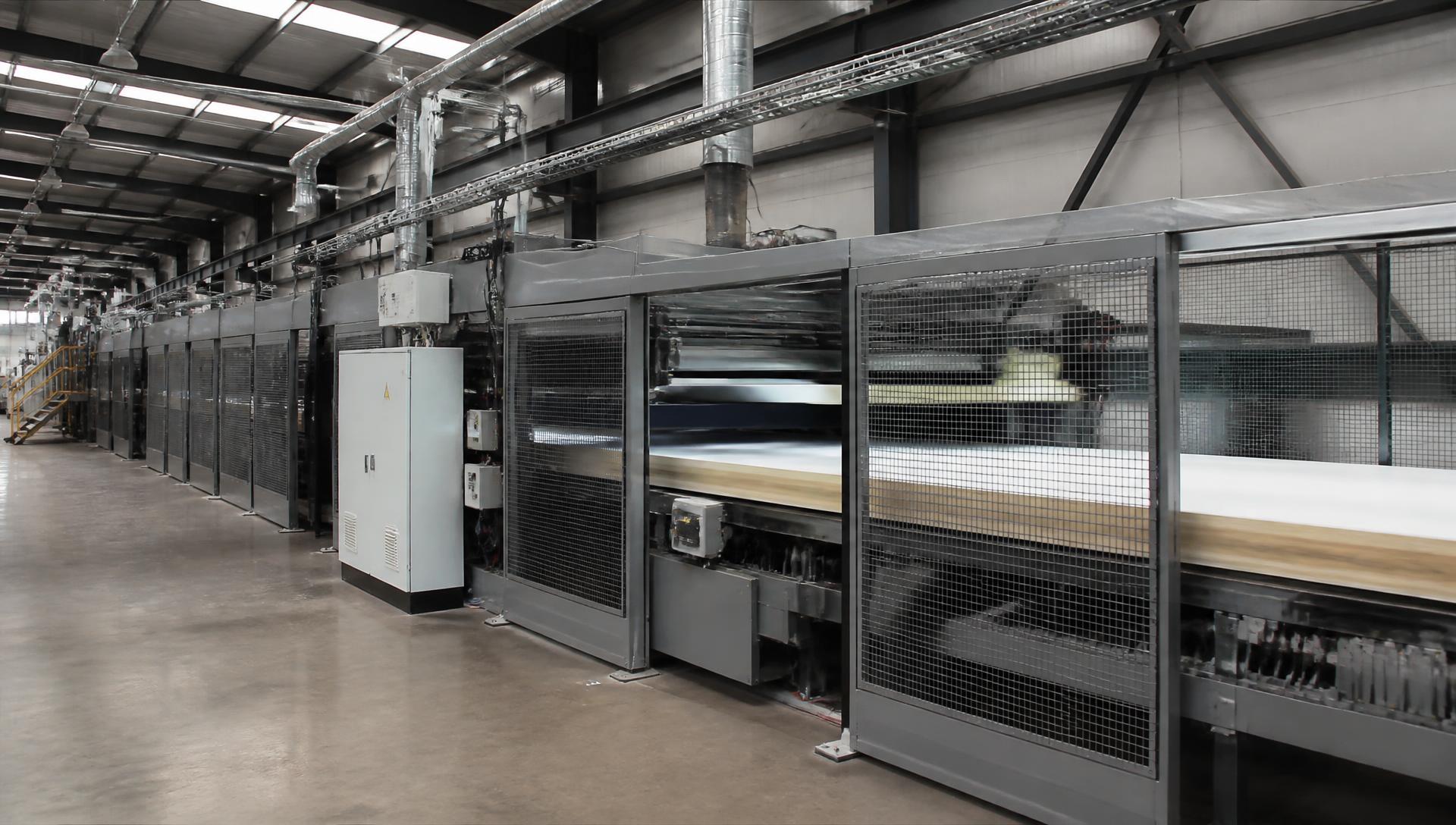

Continuous Production Lines
High-volume double-belt laminators for PIR, PUR and mineral wool panels, engineered for 24/7 operation.
Discontinuous Production Lines
Batch presses for wide thickness ranges, specialty panels and lower-volume markets.
PIR Production Systems
Fire-rated polyisocyanurate systems with dual-recipe foaming and extended curing zones.
PUR Production Systems
Cost-optimized polyurethane systems for insulated wall, roof and cold-room panels.
Rock Wool Production Lines
Mineral-wool lamella lines for A-class fire-rated panels used in industrial and commercial envelopes.
Customized Production Solutions
Bespoke lines engineered around your capacity, layout, panel spectrum and future expansion plan.
We design production systems around your requirements — not the other way around.
A sandwich panel line is a system of interdependent decisions. NEVO engineers begin with the seven questions below before a single component is specified.
- 01Required CapacitySized to your 5-year demand forecast, not to a catalogue nameplate.
- 02Automation LevelMatched to your labour market, OEE targets and operator skill base.
- 03Factory LayoutGeneral arrangement engineered around your plot, flow and utilities.
- 04Future ExpansionDocumented upgrade envelopes for speed, thickness and packaging.
- 05Energy EfficiencyHeat recovery, VFDs and optimized curing to minimize kWh per ton.
- 06Maintenance AccessEvery critical zone reachable without dismantling adjacent modules.
- 07Operator SafetyISO 13849 / EN ISO 12100 compliant guarding, interlocks and EPO logic.
Eleven engineered phases, one continuous flow.
From coil to packaged panel — every step measured, controlled and traceable.
- 01Raw Material Feeding
- 02Steel Coil Decoiling
- 03Roll Forming
- 04Preheating
- 05PU / PIR Injection
- 06Double Belt Lamination
- 07Cooling
- 08Flying Saw Cutting
- 09Automatic Stacking
- 10Packaging
- 11Finished Product
Engineered for performance. Built to last.

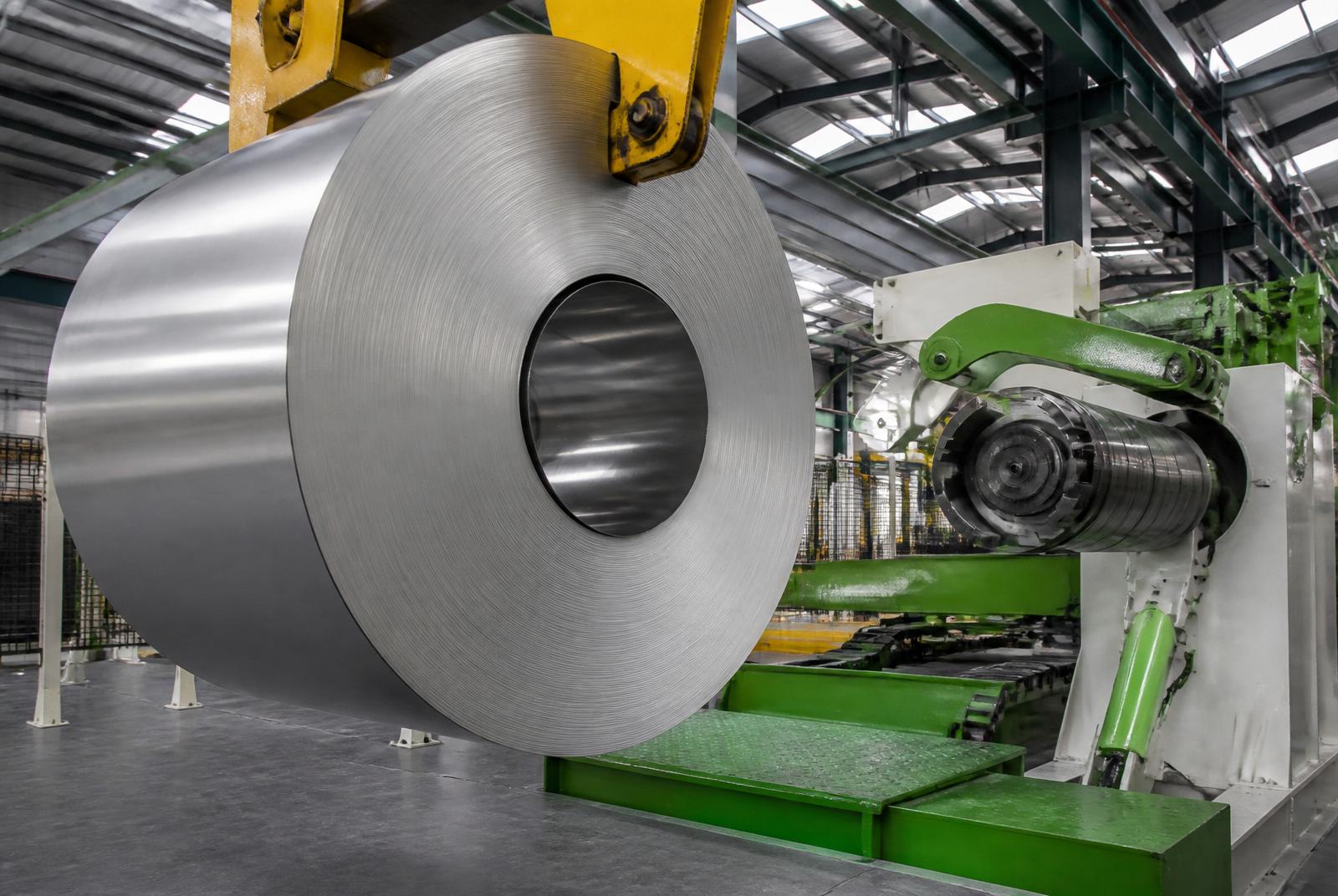

01Decoiler
Hydraulic decoiler for PPGI / PPGL steel coils. Stable, precise and high capacity.

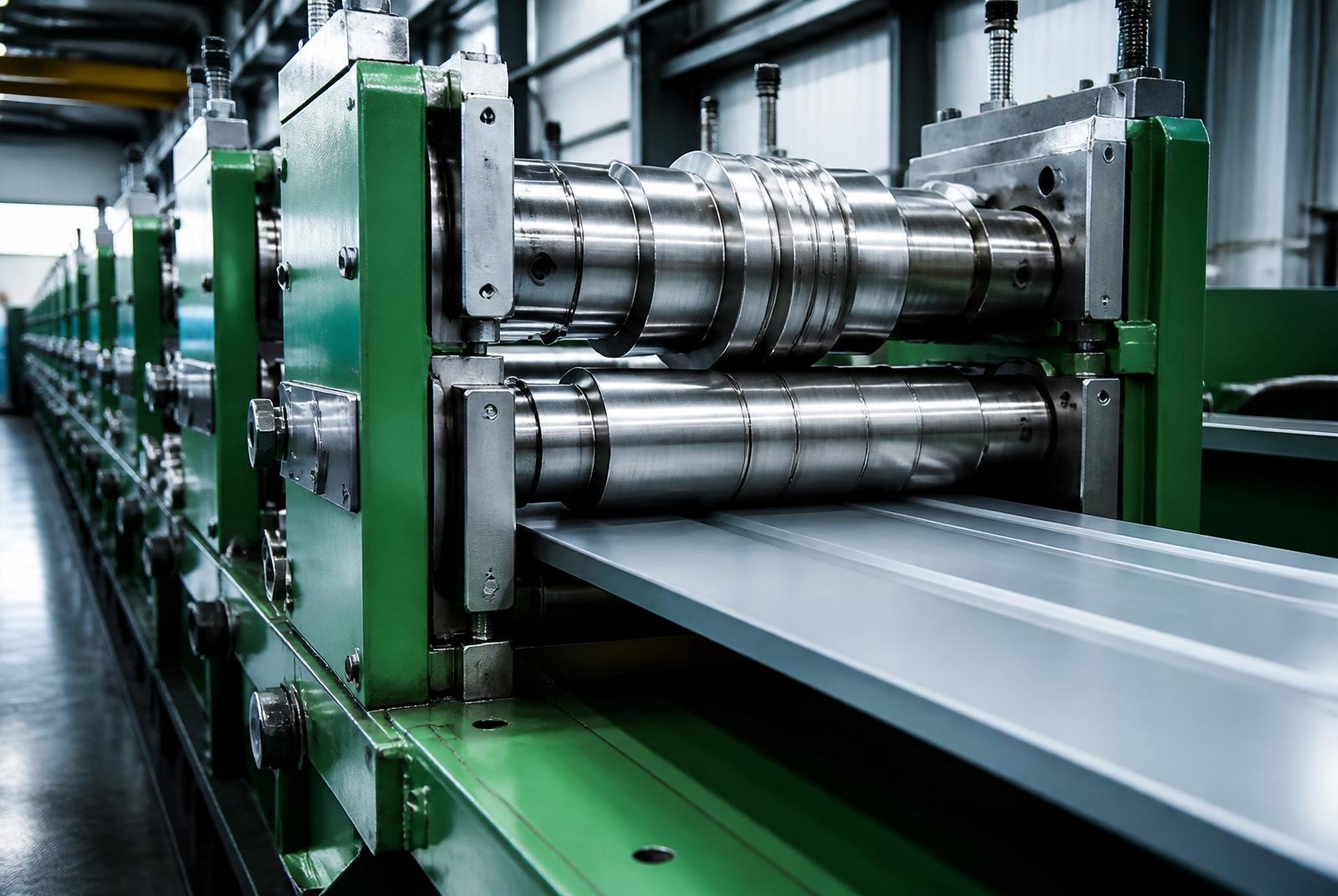

02Roll Forming Machine
High precision roll forming system for perfect panel profile and dimensional accuracy.

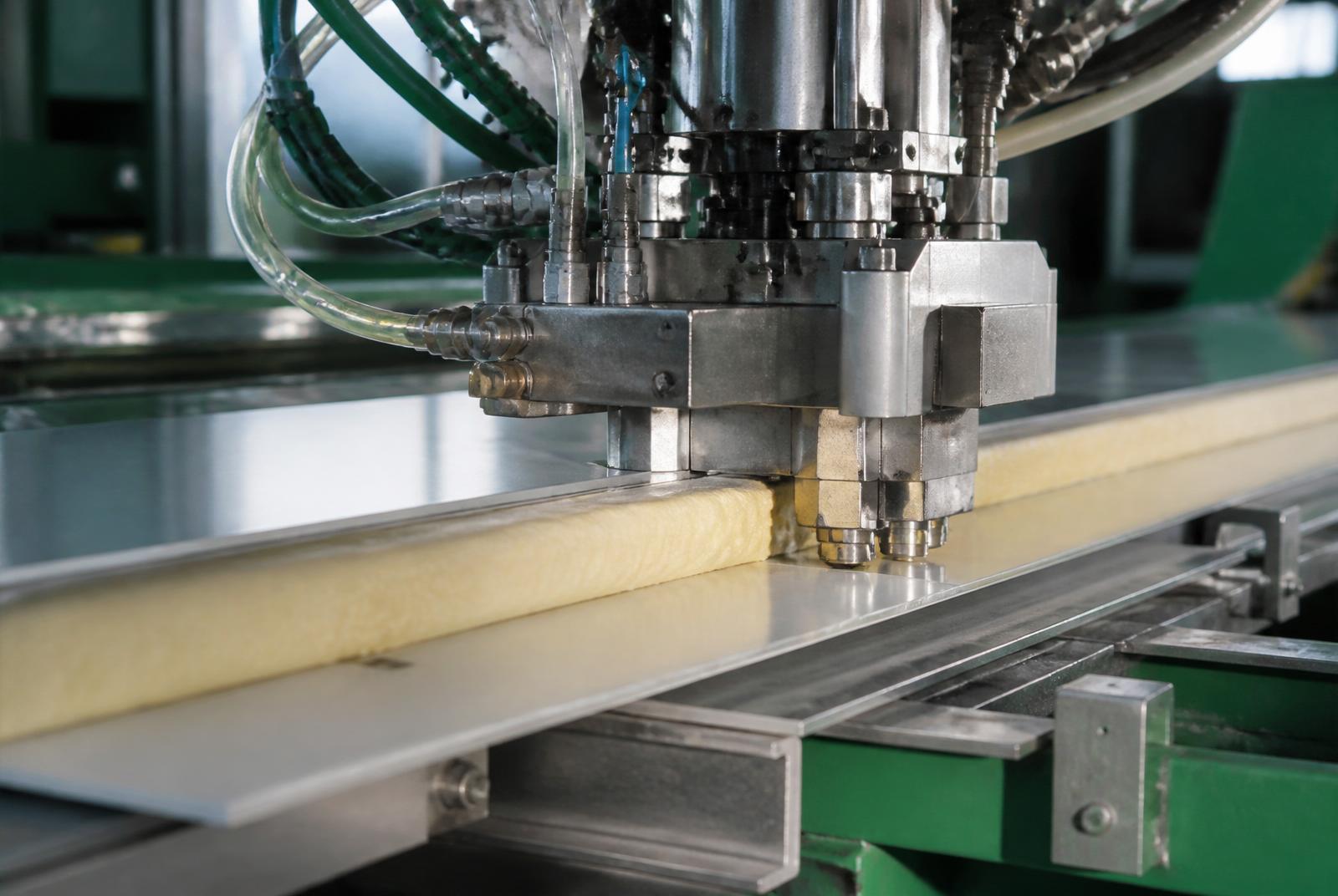

03Foam Injection System
High-pressure mixing head for precise PIR foam injection with uniform density and distribution.

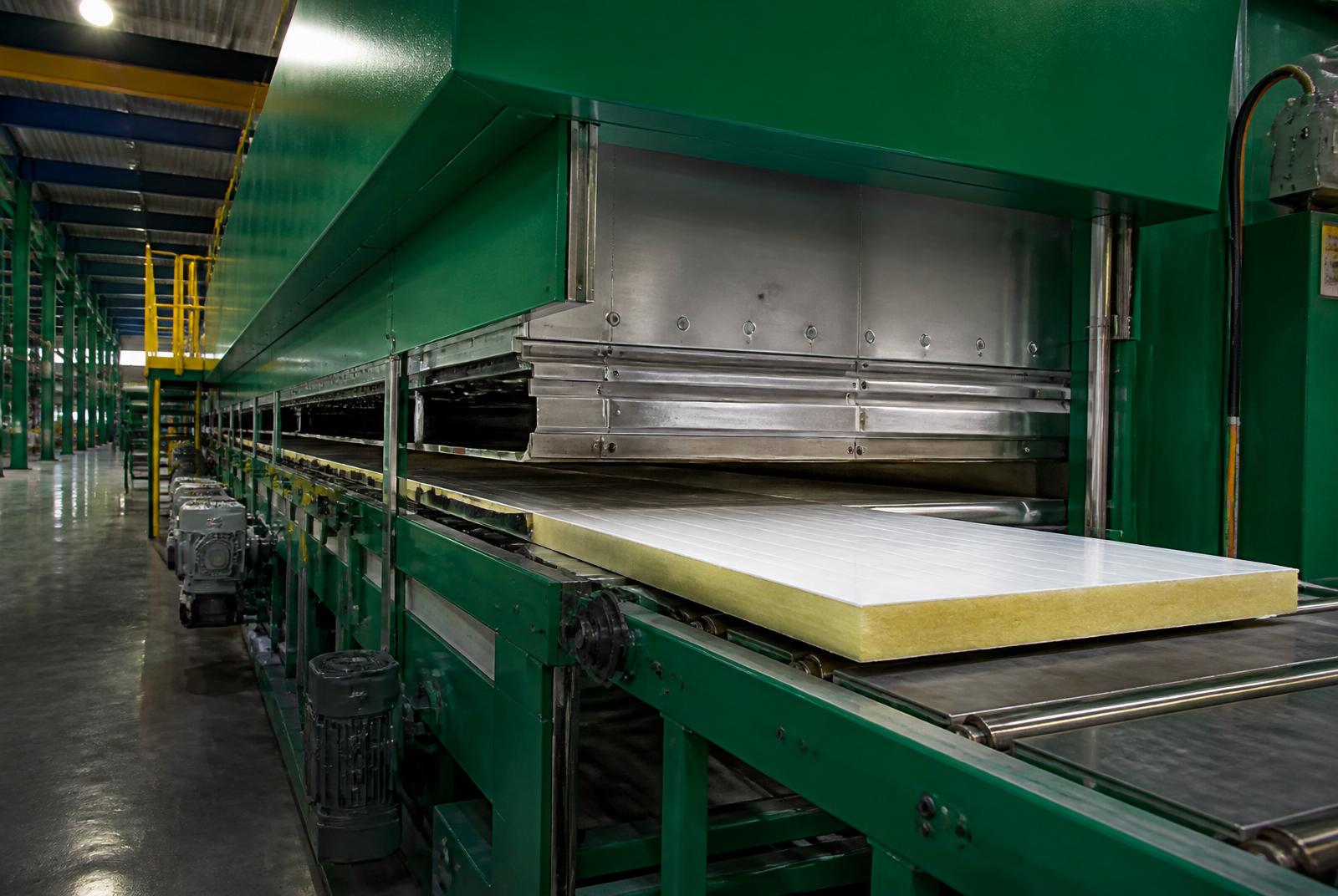

04Double Belt Laminator
Heavy-duty double belt laminator ensures strong adhesion, flatness and excellent panel quality.

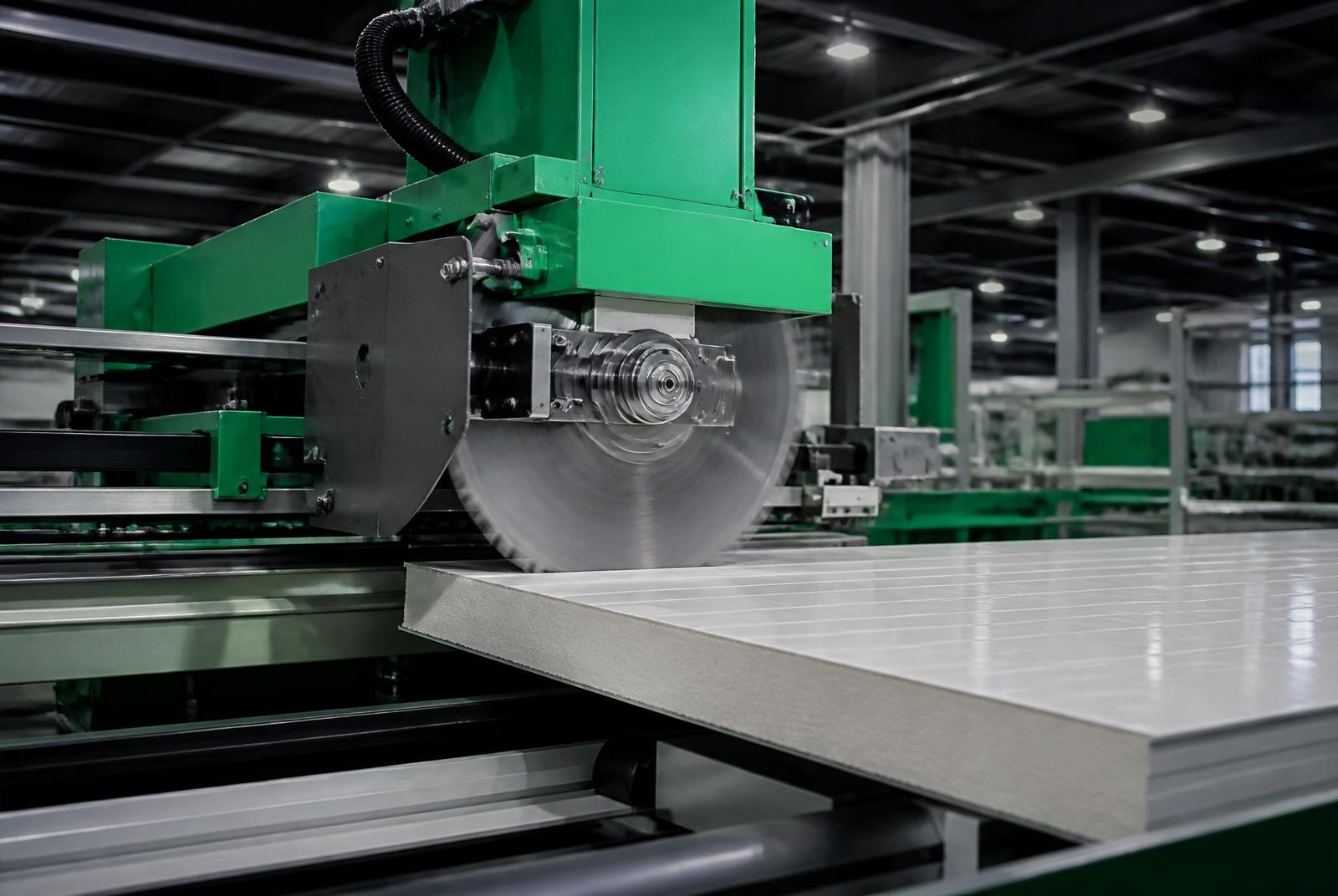

05Flying Saw Cutting System
High-speed flying saw for accurate cutting to length with smooth, clean edges.

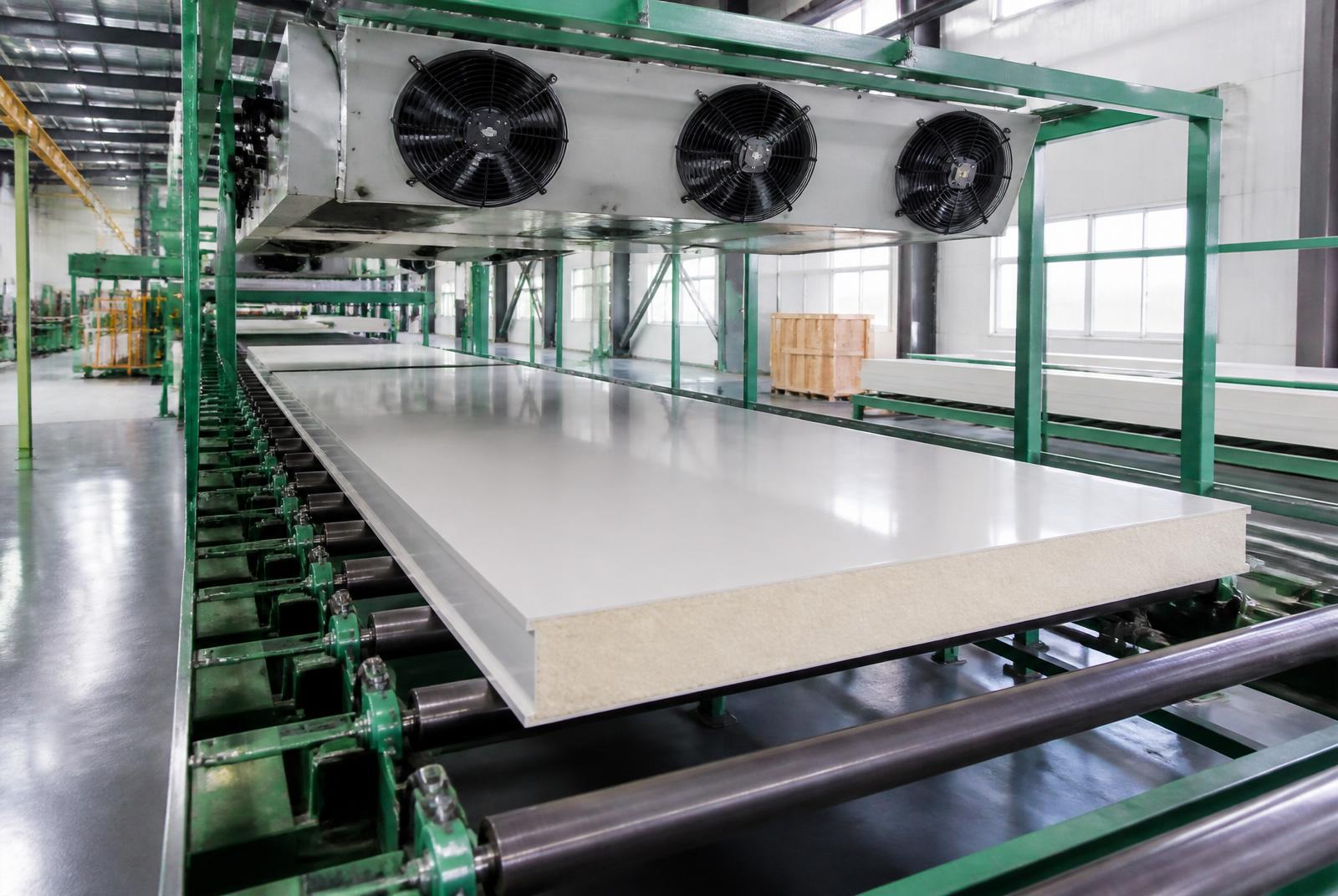

06Cooling Section
Powerful cooling system for stable panel temperature and continuous high-speed production.

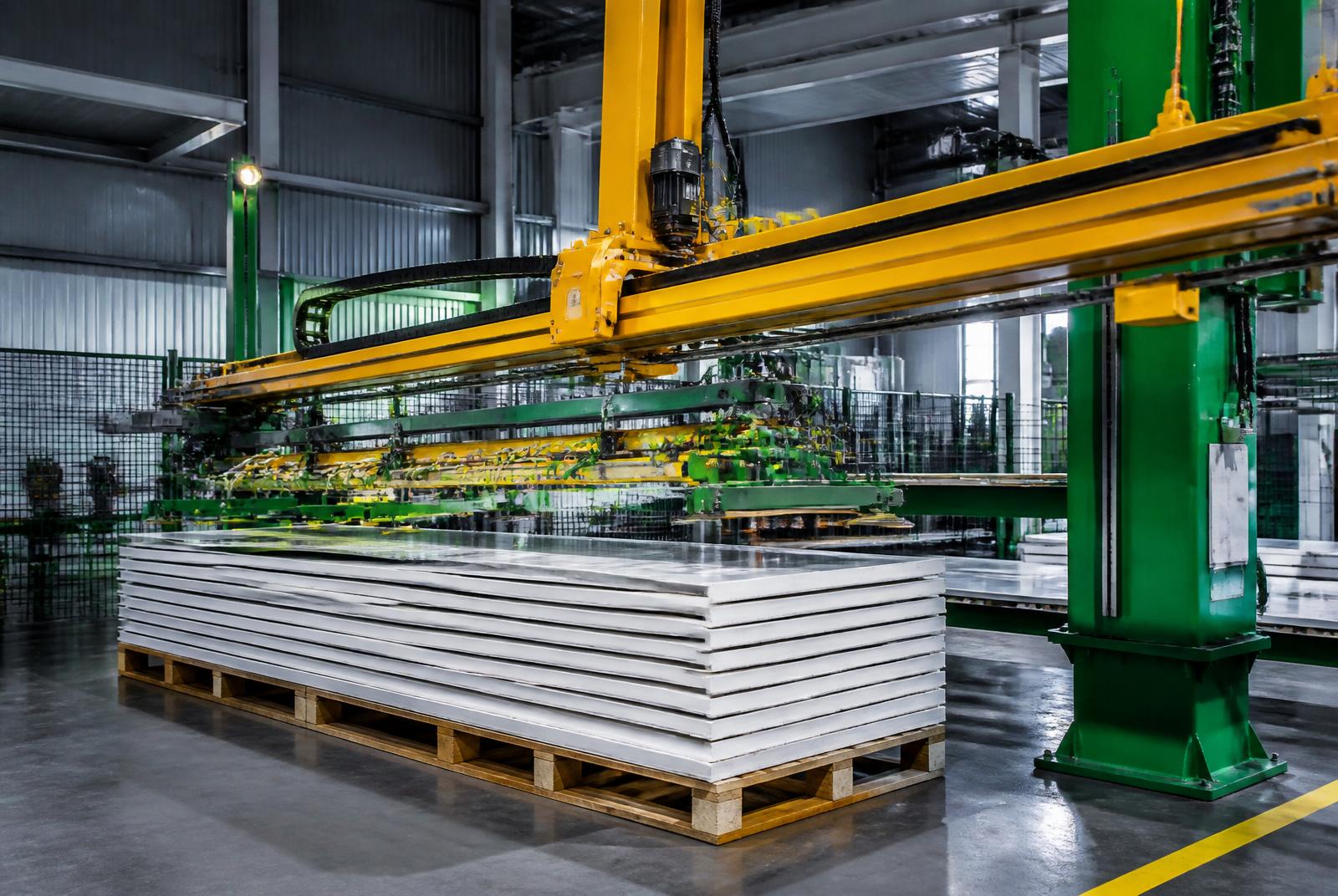

07Automatic Stacking System
Fully automatic stacking for safe handling, high efficiency and reduced labour cost.

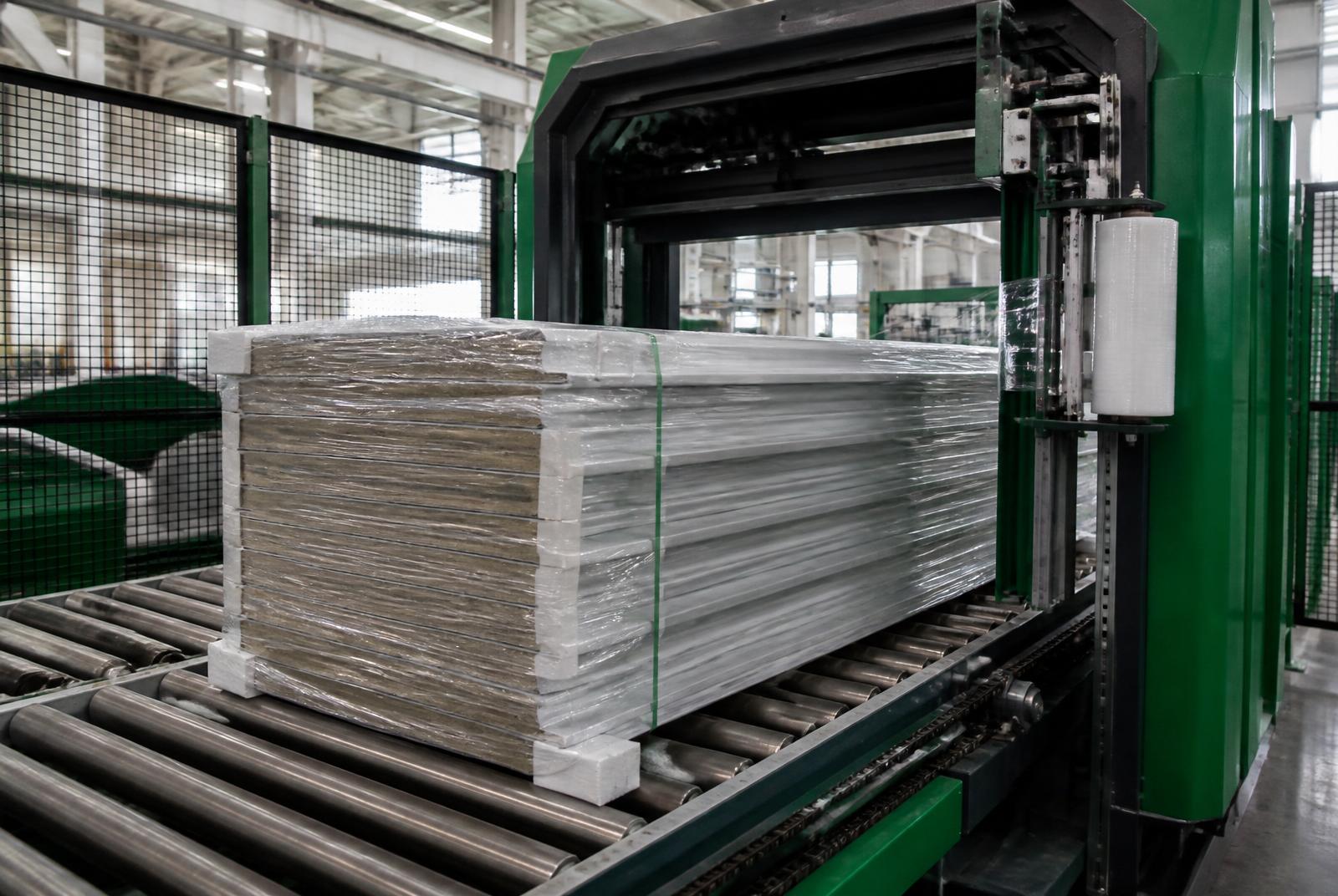

08Auto Packaging Line
Automatic packing with stretch film and edge protection for safe ocean transportation.
09Electrical & Control System
Siemens / Schneider based control system with HMI and intelligent automation.

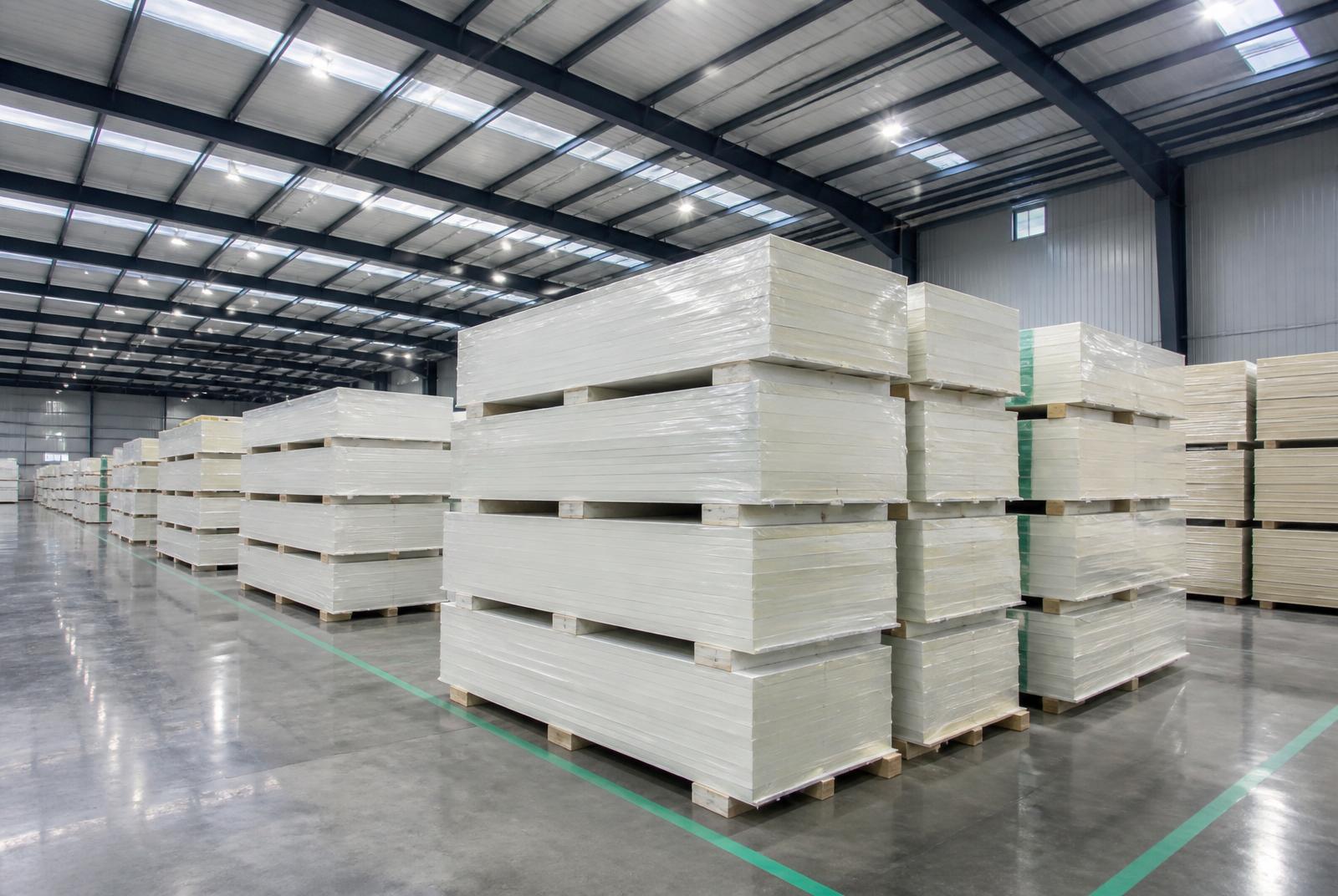

10Air Compressor System
High-efficiency air compressor ensuring stable air supply for the whole production line.
Choose the right production line for your market.
Toggle line types to compare capacity, investment, automation and expansion potential.
| Attribute | Continuous | Discontinuous | PIR |
|---|---|---|---|
| Capacity | High (up to 1.5M m²/yr) | Low–Medium (100–400k m²/yr) | High |
| Speed | 8–25 m/min | Batch cycle | 8–20 m/min |
| Investment | $$$$ | $$ | $$$$ |
| Automation | Full | Semi | Full |
| Applications | Roof, wall, cold storage | Specialty, thick panels | Fire-rated cold storage, industrial |
| Expansion Potential | High | Limited | High |
Modern control, honest data.
Every NEVO line ships with a production-grade control stack — from PLC up to Industry 4.0 integration.
PLC
Deterministic control of every actuator, valve and drive.
SCADA
Unified operator interface with alarms, trends and audit trail.
Remote Monitoring
Secure VPN diagnostics and firmware updates from NEVO.
Recipe Management
One-click switching between PIR, PUR and thickness recipes.
Quality Control
Inline thickness, density and adhesion monitoring.
Production Reports
Shift, batch and OEE reports exported automatically.
Industry 4.0 Integration
MES / ERP connectivity via OPC-UA and REST.
Panels that leave a NEVO line serve demanding environments.
Every technical document, in one place.
Catalogues, selection guides, engineering checklists and datasheets — the full NEVO document library lives in the Download Center. Request individual files or the complete pack in one step.
Engineering answers, not sales talk.
Twenty of the questions our engineers answer most often during project scoping.
Configure your continuous panel line.
Share your target capacity, panel spectrum and site constraints. Our line specialists respond with a technical proposal covering equipment, layout, utilities and commissioning within one business day.
